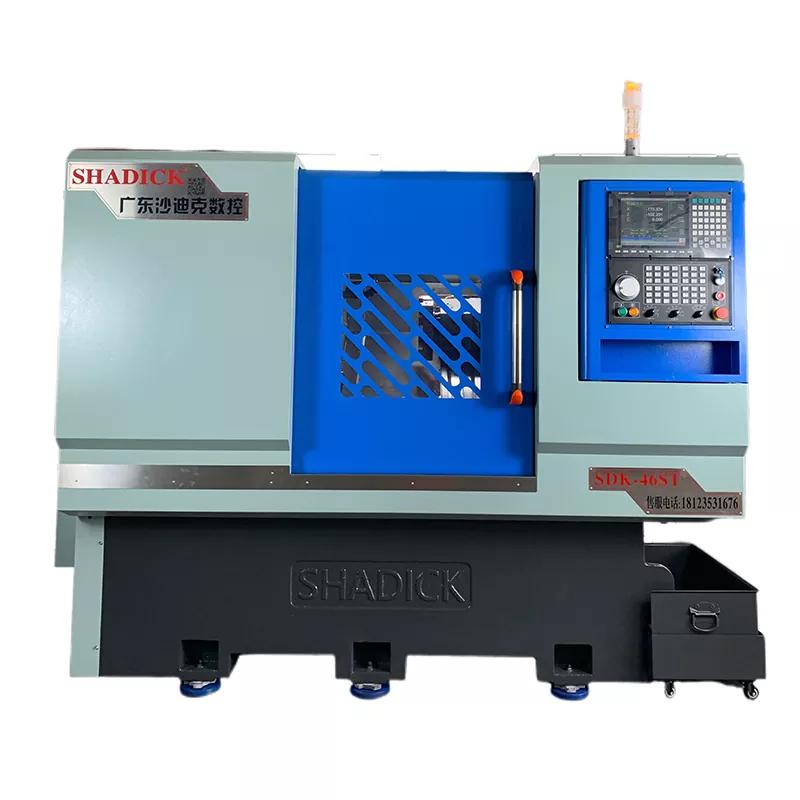

Servo Turret and Row Tool CNC Machine Tools

The installation of different components on the Servo Turret and Row Tool CNC Machine Tools to meet higher processing requirements is the advantage of our company's original factory customization, which not only saves customers economic costs but also greatly improves space, manpower, and time.

Send Inquiry

Product Description

The ultra large X-axis has a stroke of 900 and the Z-axis has a stroke of 350, making it easy to arrange knives. Servo Turret and Row Tool CNC Machine Tools can also be equipped with a turret and power head. Upgraded with a simple car and iron, it can process diversified products with multiple cutting positions at once, making cutting no longer a problem.

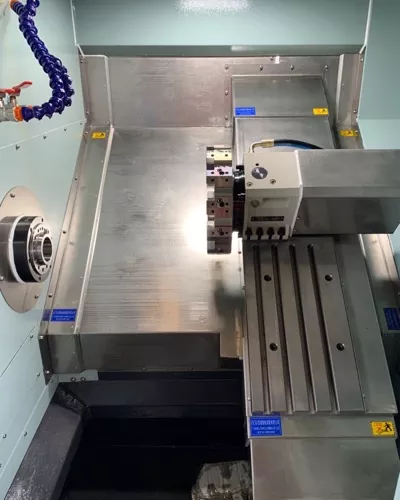

Servo turret, fast tool changing speed, high spindle accuracy, suitable for processing high gloss and high rigidity products.

Product Parameter （Specification）

Processing capacity	46A	52A
Spin the bed body	φ500
The largest diameter processing	φ350	φ400
Spindle
Spindle nose	A2-5	A2-6
Bar aperture	φ46	φ52
Spindle speed	0-6000	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	900mm
Z-axis Stroke	350mm
Motor Power
Spindle(servo)and motor	7.5KW	11KW
X axis(servo)and motor	1.3KW	1.7KW/2.4KW
Z axis(servo)and motor	1.3KW	1.7KW/2.4KW
Other
Weight	3200KG	3300KG
Mechanical dimensions	223016001900

Product Festure And Application

For machine tools that originally only had a cutting function, installing a servo turret can significantly expand its functionality. For example, when processing products with high demand for cutting tools, servo turret can provide more tool choices, improving processing flexibility and efficiency. The servo turret also supports bidirectional indexing and nearest tool selection for any tool position, further reducing tool change time and minimizing non production time during processing. The application scenarios of Servo Turret and Row Tool CNC Machine Tools cover multiple manufacturing fields such as aviation, automotive, mold, energy and heavy machinery, and electronics. This combination not only improves machining accuracy and efficiency, but also reduces costs, making it an indispensable and important equipment in modern manufacturing.
