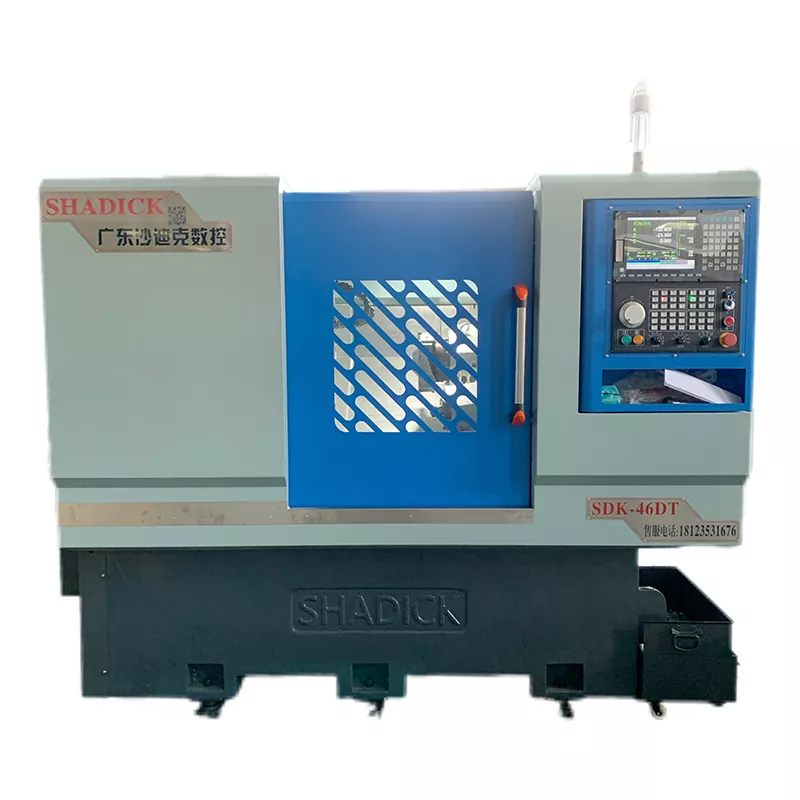

Power Turret and Row Tool CNC Machine Tools

In addition to providing standard cutting CNC machine tools and turret CNC machine tools, our company also excels in creating diverse customized machine tool solutions. We flexibly install accessories such as power heads and power towers on the basic configuration of the Power Turret and Row Tool CNC Machine Tools according to the unique needs of each customer. This approach not only optimizes production cost control, but also significantly improves overall production efficiency.

Send Inquiry

Product Description

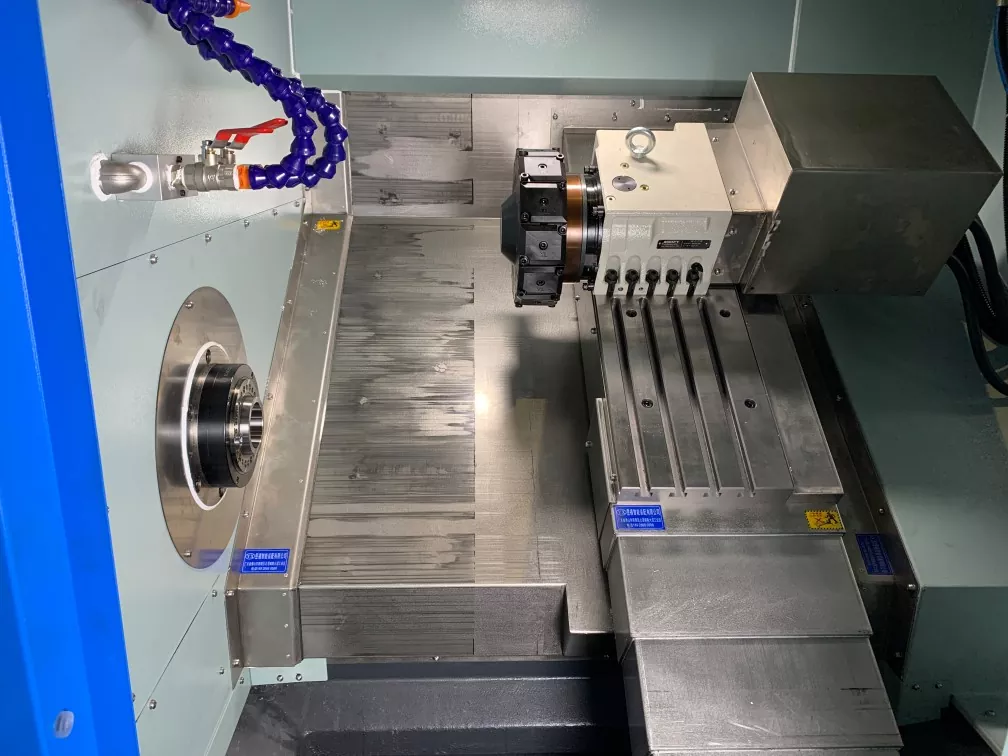

The power turret provides reliable indexing, and the BMT milling turret ensures high rigidity. The sorting of electrical components is strictly analyzed, and a reflux type cold and hot exchanger is used to ensure the lifespan of the electrical components. The entire Taiwan system can quickly locate and effectively improve machining accuracy and efficiency during high-speed operation.

Product Parameter （Specification）

Processing capacity	46DT
Spin the bed body	Φ400
The largest diameter processing	φ350
Spindle
Spindle nose	A2-5
Bar aperture	φ46
Spindle speed	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	900mm
Z-axis Stroke	350mm
Motor Power
Spindle(servo)and motor	7.5KW
X axis(servo)and motor	1.3KW/1.7KW
Z axis(servo)and motor	1.3KW/1.7KW
Other
Weight	3300KG
Mechanical dimensions	223016001900

Product Festure And Application

Power Turret and Row Tool CNC Machine Tools are also suitable for other mechanical manufacturing industries that require high-precision and high-efficiency machining, such as mold manufacturing, electronic equipment manufacturing, etc. These industries also require high-quality components and parts to support the production and assembly of their products. Its high-precision, high-efficiency processing capability and stability provide strong support for these industries, promoting the rapid development of related industries.
