Row Tool Hobbing CNC Machine Tools

Row Tool Hobbing CNC Machine Tools is designed specifically to meet customers' gear batch processing needs. It has high customization capabilities and can accurately configure the corresponding gear hobbing tool holder according to the specific size of the gear. This feature greatly promotes the efficient gear production process for customers, without the need to purchase additional hobbing machines, thereby achieving significant savings in cost control, time efficiency, and human resources. In short, this machine tool optimizes the economy and timeliness of gear production through a one-stop solution.

Send Inquiry

Product Description

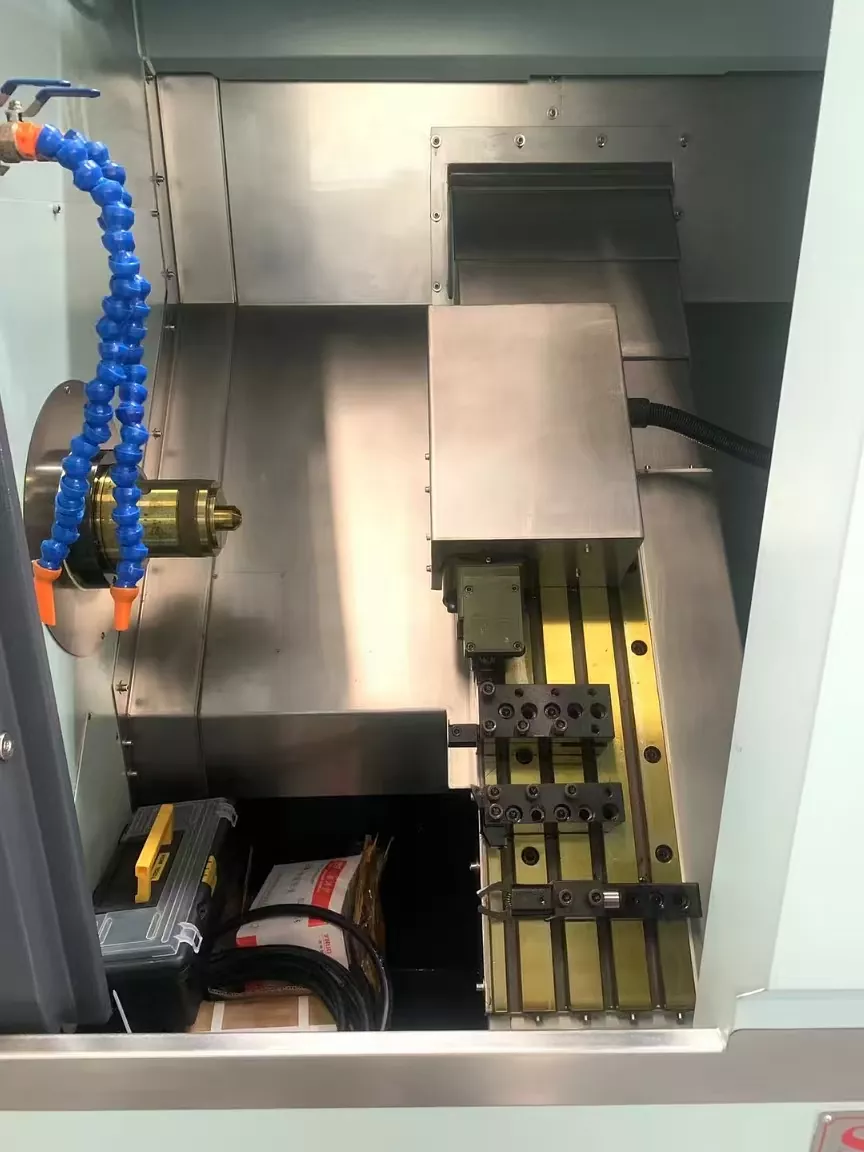

Row Tool Hobbing CNC Machine Tools has a well-designed bed, compact structure, and is easy to operate and maintain. The gear hobbing tool holder has precise positioning and adjustment functions, which can fine tune the tool according to machining needs to achieve the best cutting effect. At the same time, the tool holder is also equipped with a convenient locking mechanism to ensure that the tool can be firmly locked in the adjusted position, avoiding machining errors caused by looseness.

Product Parameter （Specification）

Processing capacity	46A	52A
Spin the bed body	φ500
The largest diameter processing	φ350	φ400
Spindle
Spindle nose	A2-5	A2-6
Bar aperture	φ46	φ52
Spindle speed	0-6000	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	900mm
Z-axis Stroke	400mm	350mm
Motor Power
Spindle(servo)and motor	7.5KW	11KW
X axis(servo)and motor	1.3KW	1.7KW/2.4KW
Z axis(servo)and motor	1.3KW	1.7KW/2.4KW
Other
Weight	3200KG	3300KG
Mechanical dimensions	223016001900

Product Festure And Application

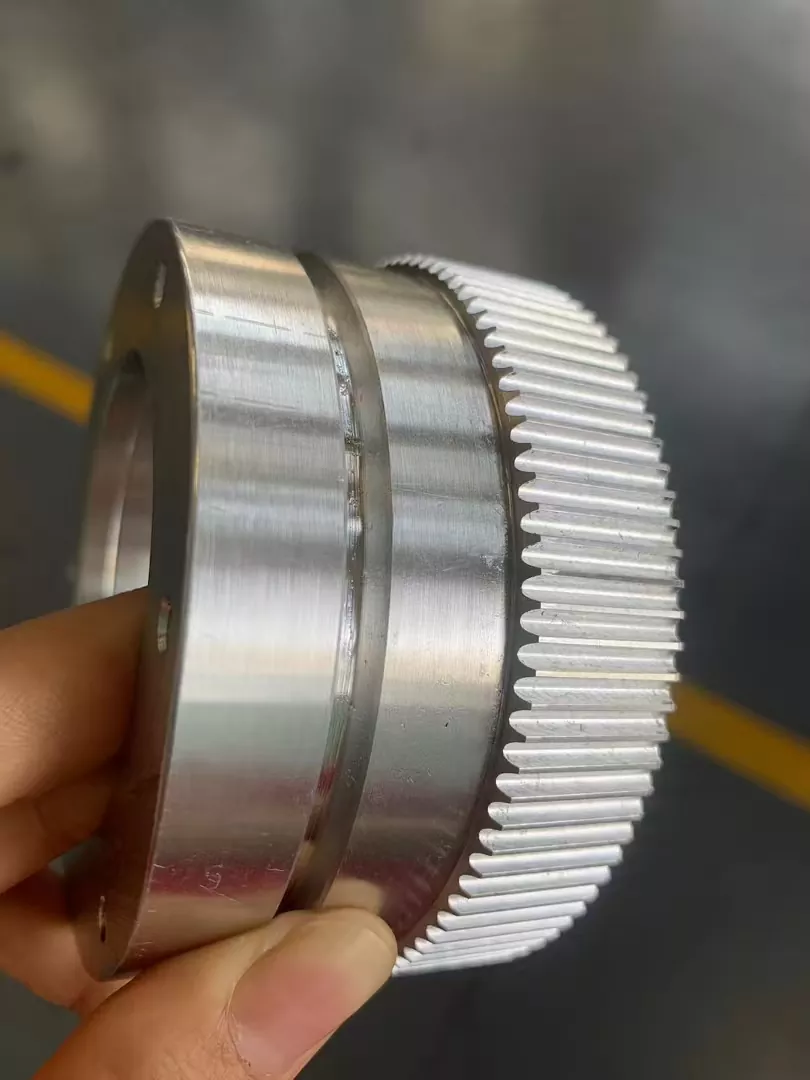

Row Tool Hobbing CNC Machine Tools play an important role in the manufacturing industry, with a wide range of application scenarios and rich specific examples. Our CNC Machine Tools are needed in industries such as automotive, machine tool manufacturing, and aerospace to machine high-precision and high-quality gears.
