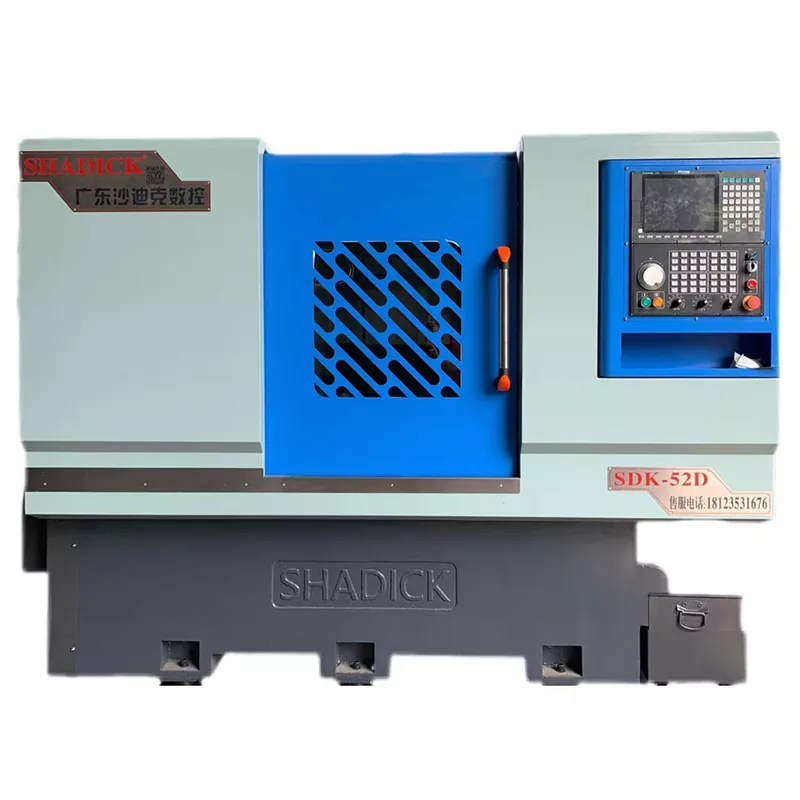

52-Turret CNC Machine Tools

Our company has been deeply involved in the field of numerical control for over ten years, providing extensive services to various industries and accumulating rich industry experience and numerous successful cases. We have a team of senior technical engineers who, with rich practical experience, can quickly and accurately respond to and solve customers' diverse needs. Choosing us means you will enjoy a worry free equipment usage experience and excellent after-sales service guarantee, allowing you to have no worries about the operation, maintenance, and subsequent support of 52-Turret CNC Machine Tools.

Send Inquiry

Product Description

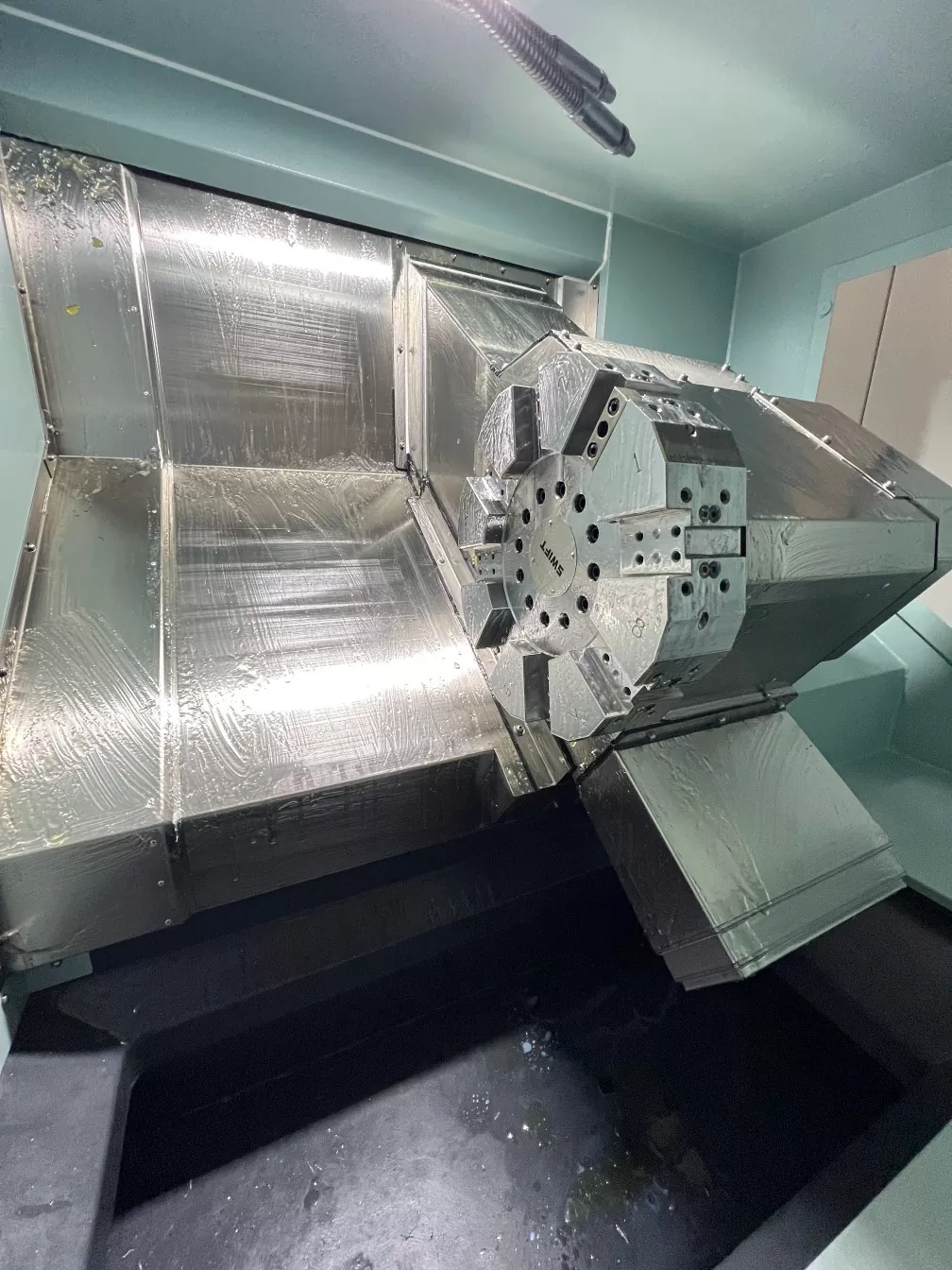

52-Turret CNC Machine Tools excellently integrates advanced design and exquisite craftsmanship. Its bed adopts integrated casting technology, effectively reducing shock absorption damping and deformation, thereby ensuring high precision in the machining process. The bed with a 45 degree inclined design not only optimizes operational convenience, but also greatly promotes chip removal efficiency. Equipped with high-performance servo turret as standard, it achieves fast tool changing and multi tool position configuration, significantly improving machining efficiency. In addition, the fully enclosed internal protective structure provides comprehensive oil, water, and dust protection, ensuring that the machine tool can operate stably in various environments and demonstrate excellent performance.

Product Parameter （Specification）

Processing capacity	52D
Spin the bed body	φ500
The largest diameter processing	φ400
Spindle
Spindle nose	A2-6
Bar aperture	φ52
Spindle speed	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	590mm
Z-axis Stroke	400mm
Motor Power
Spindle(servo)and motor	11KW
X axis(servo)and motor	1.8KW/2.4KW
Z axis(servo)and motor	1.8KW/2.4KW
Other
Weight	3300KG
Mechanical dimensions	225515301950

Product Festure And Application

Compared to 46 Turret CNC Machine Tools, 52-Turret CNC Machine Tools demonstrate significant advantages with its larger spindle through-hole design. It can easily accommodate workpieces with larger diameters, so it performs particularly well in machining large shafts, disk sleeves, and other parts. In high-end manufacturing fields such as aerospace and shipbuilding, the demand for large-sized precision parts is particularly urgent, and 52 Turret CNC Machine Tools is the ideal choice to meet these high-precision machining needs.
