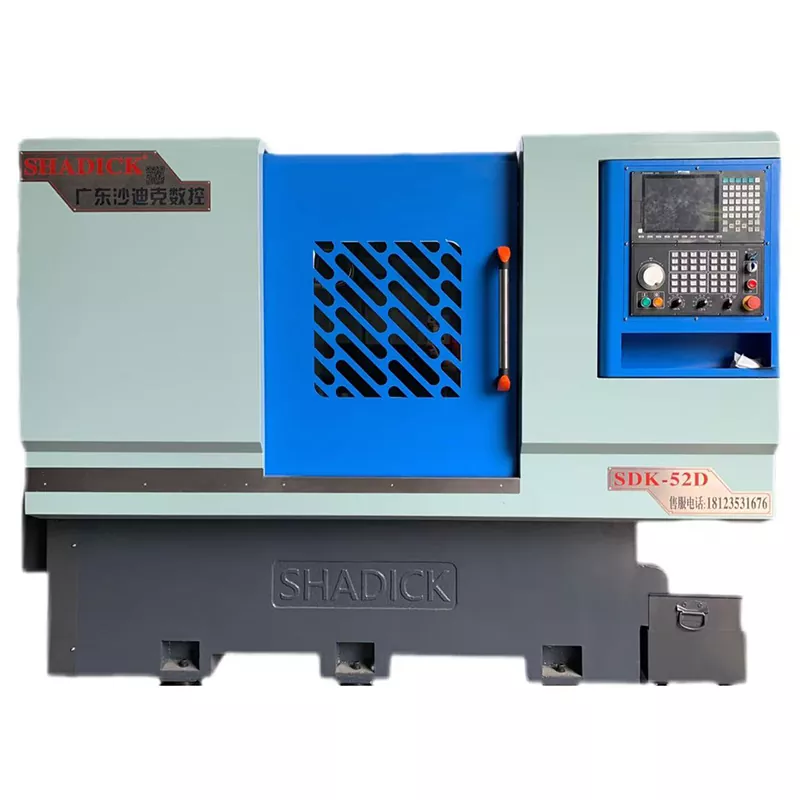

46-Tailstock Turret CNC Machine Tools

The 46-Tailstock Turret CNC Machine Tools have significant advantages in machining accuracy. The tailstock fixes the workpiece to avoid displacement caused by workpiece vibration during the machining process, thereby ensuring machining accuracy and quality. Machine tools with tail tops have stronger adaptability and are suitable for processing various materials, including metals, plastics, ceramics, etc. They can be used for both small-scale and large-scale production.

Send Inquiry

Product Description

46-Tailstock Turret CNC Machine Tools also have higher work efficiency. The tail top can fix the workpiece, making the machining process more stable, reducing the wear of machining tools, extending the service life of tools, and thus improving work efficiency. Machine tools without tail tops may require more adjustments and monitoring during the machining process, which affects the overall work efficiency.

Product Parameter （Specification）

Processing capacity	46D
Spin the bed body	φ500
The largest diameter processing	φ350
Spindle
Spindle nose	A2-5
Bar aperture	φ46
Spindle speed	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	250mm
Z-axis Stroke	510mm
Motor Power
Spindle(servo)and motor	7.5KW
X axis(servo)and motor	1.3KW/1.7KW
Z axis(servo)and motor	1.3KW/1.7KW
Tailstock
Center type	Morse No.5 (rotary center)
Sleeve diameter	Φ95mm
Cylinder working pressure	5-20KG
Center stroke	120mm
Tailstock stroke	420mm
Other
Weight	3500KG
Mechanical dimensions	271016351685

Product Festure And Application

The turret crane with a tail top is very suitable for precision machining of parts due to its high precision and rigidity. For example, in fields such as aerospace, medical equipment, and automotive manufacturing, there are extremely high requirements for the dimensional accuracy and surface smoothness of parts, and turret cranes with tail tops can meet these high-precision machining needs.
