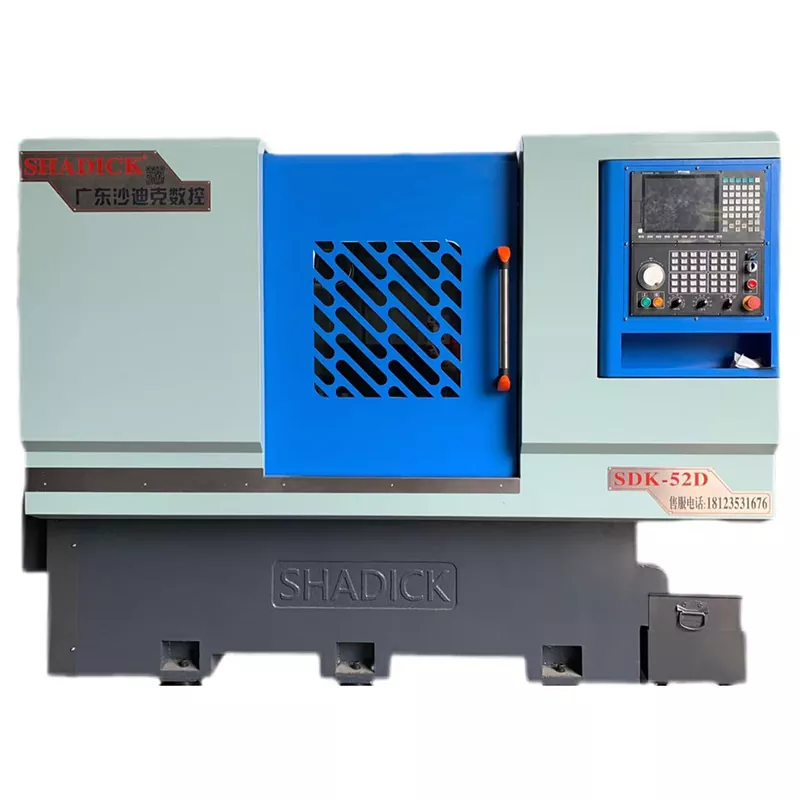

52-Tailstock Turret CNC Machine Tools

Before using the 52-Tailstock Turret CNC Machine Tools, ensure that the power, pneumatic, hydraulic, and other systems of the machine are in normal condition. Check whether the cutting tools, fixtures, and workpieces are securely installed, and whether accessories such as the tailstock are intact and undamaged. Write or import corresponding CNC programs according to processing requirements. In the program, it is necessary to preset the start and stop positions of the tail top, as well as the relevant movement instructions and parameters.

Send Inquiry

Product Description

Our 52-Tailstock Turret CNC Machine Tools, equipped with a turret featuring a center height of 100, a cutter disc diameter of 420, and 12 stations, has stable rigidity and high precision. It is equipped with a programmable hydraulic tailstock. With just one press of a button, you can extend or retract the tailstock, which makes it easy to clamp workpieces. It has two control speeds, fast and slow. The 35-degree bed design greatly reduces the load on the X-axis motor. The installation of roller screws increases the rigidity and stability. It is capable of large-scale precision machining of steel parts and stainless steel parts, as well as drilling and tapping operations at the shaft ends. The machine with a tailstock can machine long shaft parts.

Product Parameter （Specification）

Processing capacity	52D
Spin the bed body	φ500
The largest diameter processing	φ400
Spindle
Spindle nose	A2-6
Bar aperture	φ52
Spindle speed	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	250mm
Z-axis Stroke	510MM
Motor Power
Spindle(servo)and motor	11KW
X axis(servo)and motor	1.8KW/2.4KW
Z axis(servo)and motor	1.8KW/2.4KW
Tailstock
Center type	Morse No.5 (rotary center)
Sleeve diameter	Φ95mm
Cylinder working pressure	5-20KG
Center stroke	120mm
Tailstock stroke	420mm
Other
Weight	3500KG
Mechanical dimensions	271016351685

Product Festure And Application

In scenarios that require large-scale production, turret cranes with tail tops also perform well. 52-Tailstock Turret CNC Machine Tools' efficient processing capability and stable processing quality enable it to significantly improve production efficiency while ensuring product quality. For example, in fields such as automobile manufacturing and electronic product manufacturing, turret cranes with tail tops are widely used for mass production of components.
