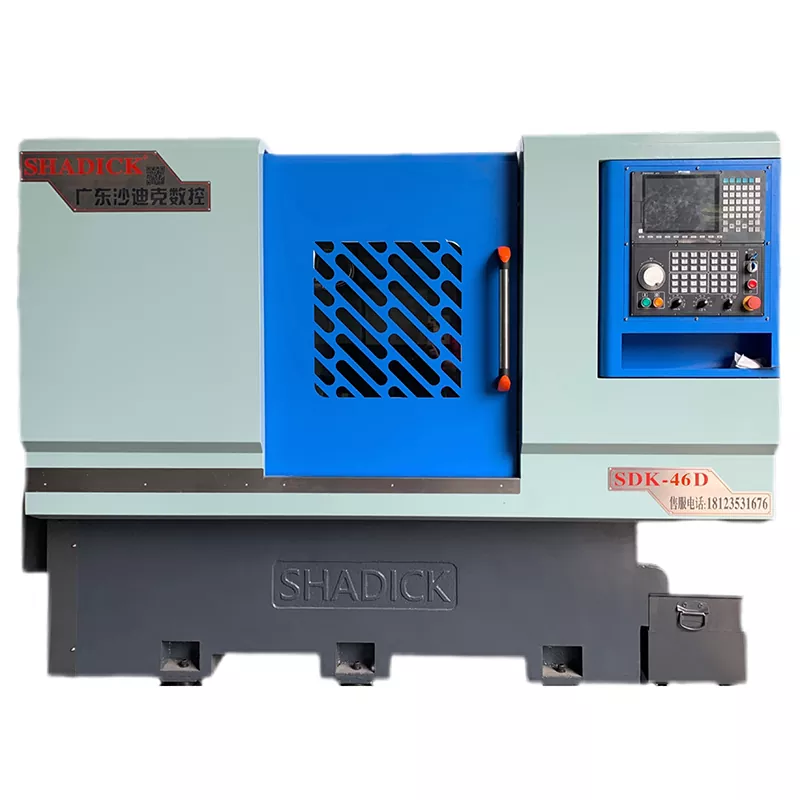

46-Turret CNC Machine Tools

The 46-Turret CNC Machine Tools use cutting tools to rotate and cut workpieces, making it suitable for large-scale production. It has multifunctionality and can integrate various machining processes such as milling, drilling, and tapping. Complex parts can be machined through programming, and it has a high degree of automated machining capability.

Send Inquiry

Product Description

Our 46-Turret CNC Machine Tools adopt an integrated casting bed, which has strong shock absorption and damping, small deformation, and ensures high precision.

45 degree inclined bed for easy operation and chip removal.

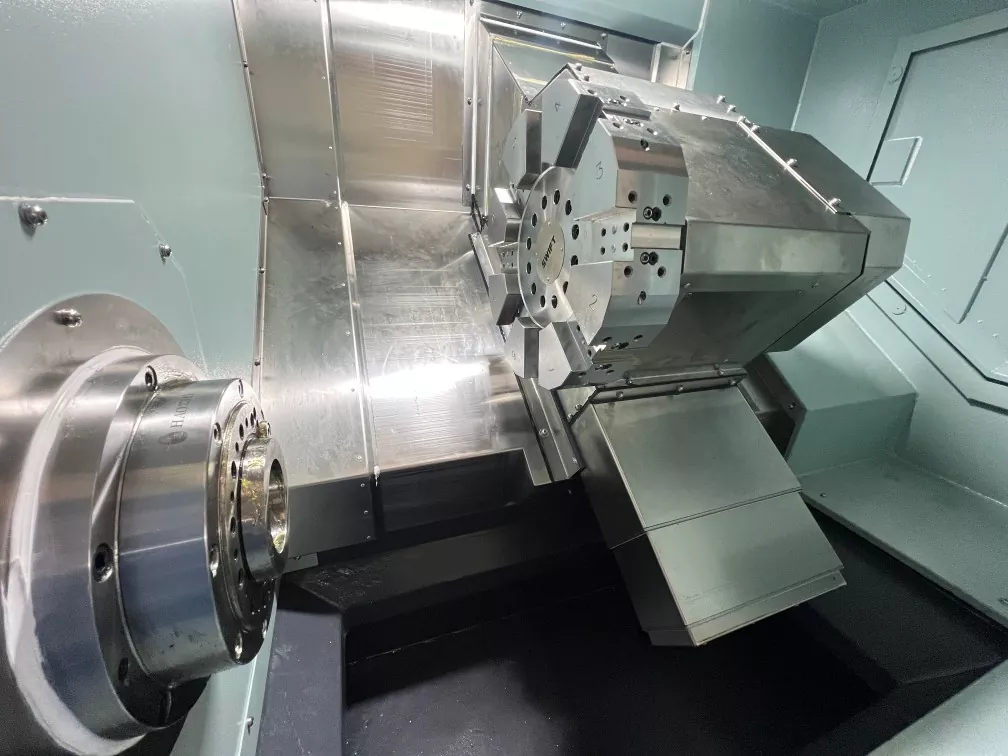

Equipped with servo turret as standard, it has fast tool changing and multiple tool positions, improving efficiency.

Fully protected with oil, water, and dust to ensure stable operation.

Product Parameter （Specification）

Processing capacity	46D
Spin the bed body	φ500
The largest diameter processing	φ350
Spindle
Spindle nose	A2-5
Bar aperture	φ46
Spindle speed	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	590mm
Z-axis Stroke	400mm
Motor Power
Spindle(servo)and motor	7.5KW
X axis(servo)and motor	1.3KW/1.7KW
Z axis(servo)and motor	1.3KW/1.7KW
Other
Weight	3300KG
Mechanical dimensions	225515301950

Product Festure And Application

46-Turret CNC Machine Tools are widely used in the fields of mechanical manufacturing, automotive parts, mold manufacturing, etc., especially suitable for the processing of shaft and disc parts, and are widely used in industries such as automotive manufacturing and mechanical manufacturing
