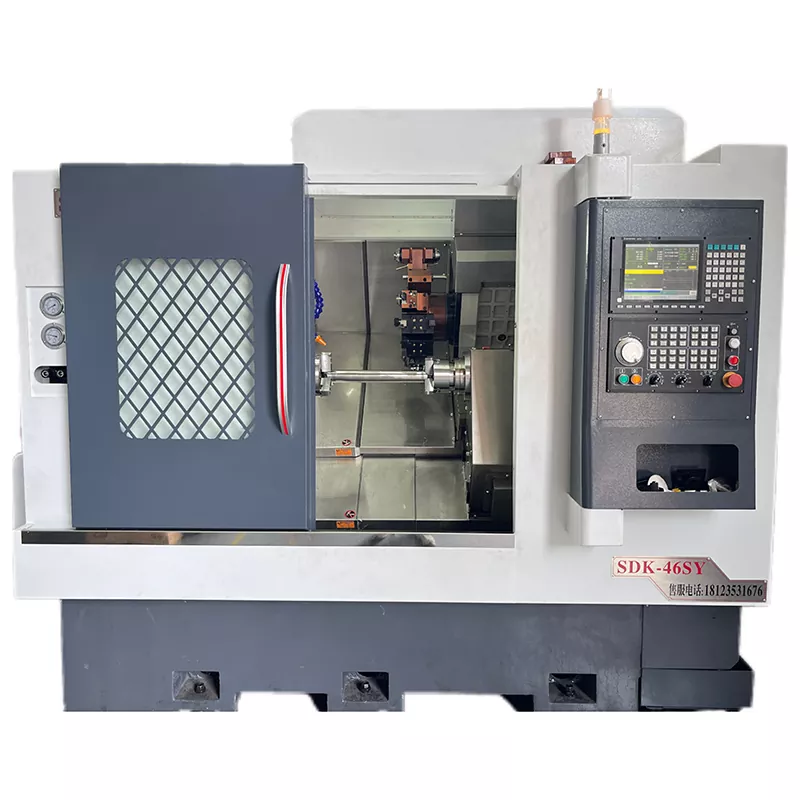

Double-Spindle Single-Turret CNC Machine Tools

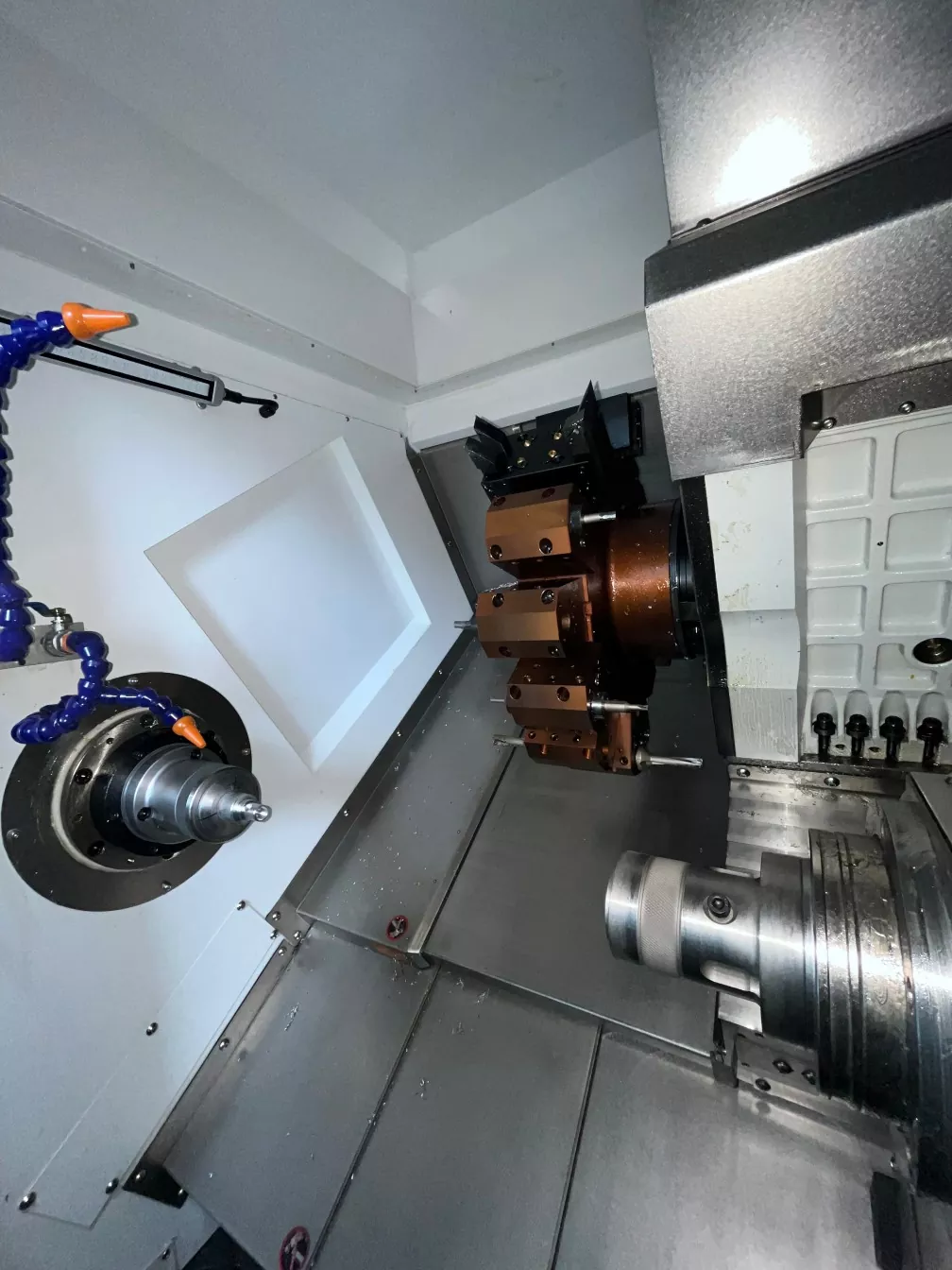

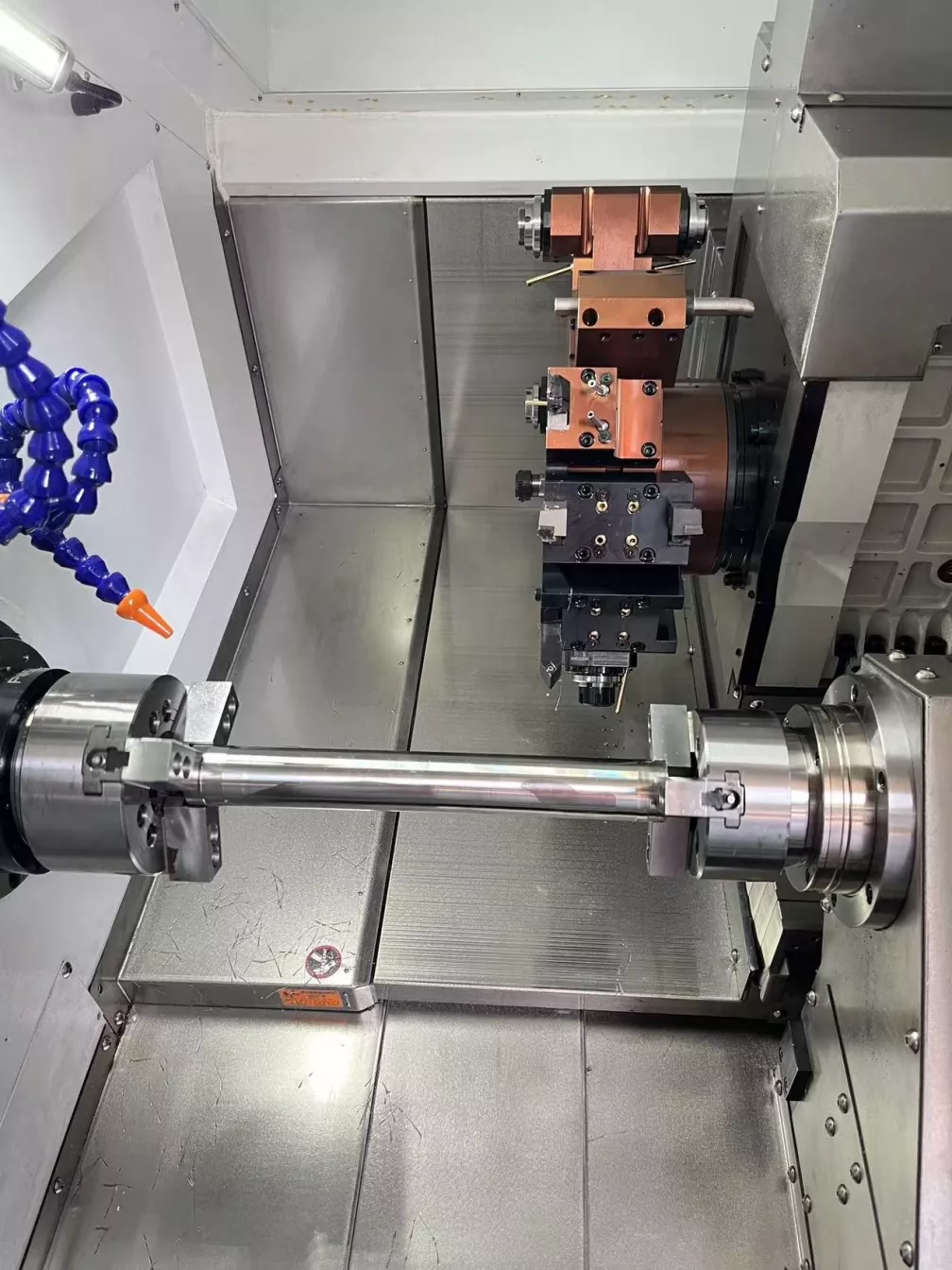

Double-Spindle Single-Turret CNC Machine Tools， As the name suggests, the machine tool is equipped with two spindles and a turret. The bed of this type of machine tool is usually equipped with a workpiece spindle frame and a workpiece sub spindle frame, as well as a movable turret. The workpiece spindle frame and workpiece sub spindle frame are respectively used for clamping and machining workpieces, while the tool holder is responsible for cutting operations.

Send Inquiry

Product Description

Compared to traditional CNC lathes, Double-Spindle Single-Turret CNC Machine Tools have a higher degree of automation. It can achieve automated processing through programming, reducing manual intervention and errors, and improving processing accuracy and stability. The turret can be installed on the slide rail seat with up and down, left and right displacement, so as to move to the appropriate position according to processing requirements. By moving the turret, the machine tool can complete the machining of both ends of the workpiece, further improving machining flexibility.

Product Parameter （Specification）

Processing capacity	46SY
Spin the bed body	φ500
The largest diameter processing	φ350
The maximum processing length	400mm
Spindle
Spindle nose	A2-5
Bar aperture	φ45
Spindle speed	0-4500
Auxiliary spindle motor	A2-4(motor spindle)
Bar aperture	Φ36
Spindle speed	0-5000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	220mm
Z-axis Stroke	420mm
Travel Y-axis	±45mm/±50mm
Motor Power
Spindle(servo)and motor	7.5KW
X axis(servo)and motor	3.1KW
Z axis(servo)and motor	3.1KW
Y axis(servo)and motor	2.4KW
Turret
Turret	BMT45/55
Other
Weight	4200KG
Mechanical dimensions	245017502120

Product Festure And Application

Double-Spindle Single-Turret CNC Machine Tools are widely used in the machining of parts in industries such as rollers, sports equipment, agricultural machinery, and automotive components. These industries have high requirements for machining accuracy and efficiency of parts, and dual spindle single turret CNC machine tools are the ideal choice to meet these needs.
