46-Row Tool CNC Machine Tools

Shadick is an original 46-Row Tool CNC Machine Tools manufacturer in China, specializing in the R&D and manufacturing of CNC machine tools for many years. Our products offer distinct advantages in both price and quality, and we look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

45 degree inclined bed design, convenient for operators to clamp workpieces up and down, and smooth chip removal.The ultra large X-axis has a stroke of 900 and the Z-axis has a stroke of 350, making 46-Row Tool CNC Machine Tools easy to arrange knives. It can also be equipped with a turret and power head. Upgraded simple milling compound with multiple options, can be equipped with a flying cutter head to achieve 4-axis linkage function. The one-piece cast bed body ensures the stability and accuracy of the assembled machine, with an independent spindle unit.

Product Parameter （Specification）

Processing capacity	46A
Spin the bed body	φ500
The largest diameter processing	φ350
Spindle
Spindle nose	A2-5
Bar aperture	φ46
Spindle speed	0-6000
Mechanical precision
Repeat positioning accuracy	±0.005
Spindle firing	≤0.005/100mm
Spindle taper	≤0.005/100mm
X, Z crosshair	≤0.005/100mm
X/Z axis fast-moving speed	24m/min
Axial Stroke
X-axis Stroke	900mm
Z-axis Stroke	350mm
Motor Power
Spindle(servo)and motor	7.5KW
X axis(servo)and motor	1.3KW/1.7KW
Z axis(servo)and motor	1.3KW/1.7KW
Other
Weight	3200KG
Mechanical dimensions	223016001900

Product Festure And Application

Shadick 46-Row Tool CNC Machine Tools have become a benchmark equipment in the small and medium-sized precision part machining sector, thank to their long-cycle stress relief process, core components from top international brands, and intelligent machining capabilities. It is particularly well-suited for flexible production scenarios that demand multi-variety, small-batch, and high-precision requirements, making it an ideal choice for Tier 2 suppliers in the automotive parts, medical, and 3C industries to upgrade production capacity.

Production Details

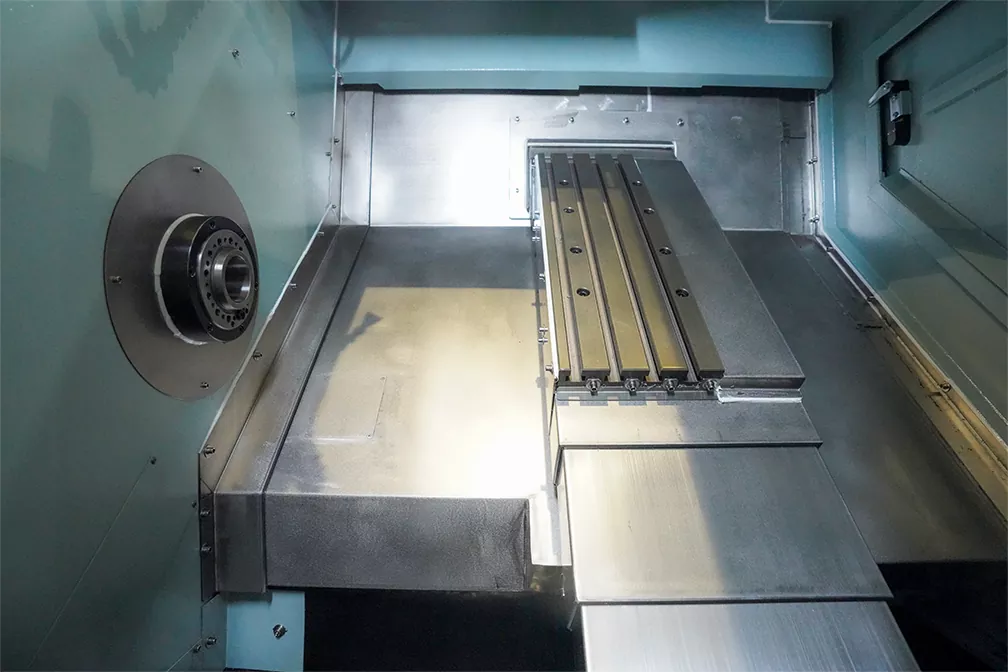

46-Row Tool CNC Machine Tools Internal structure display, X-axis stroke 900, Z-axis stroke 350

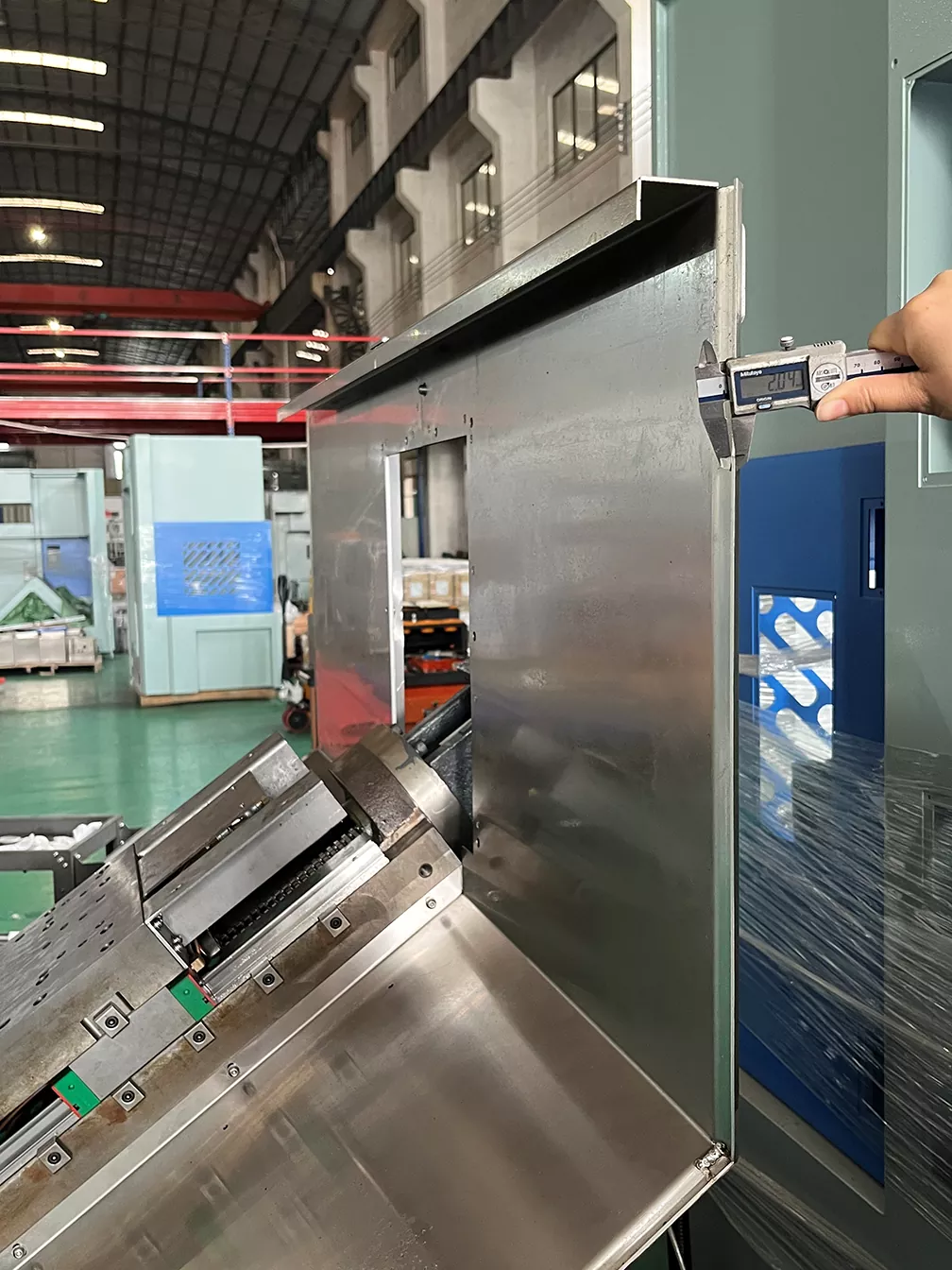

2mm stainless steel fully enclosed protective design。

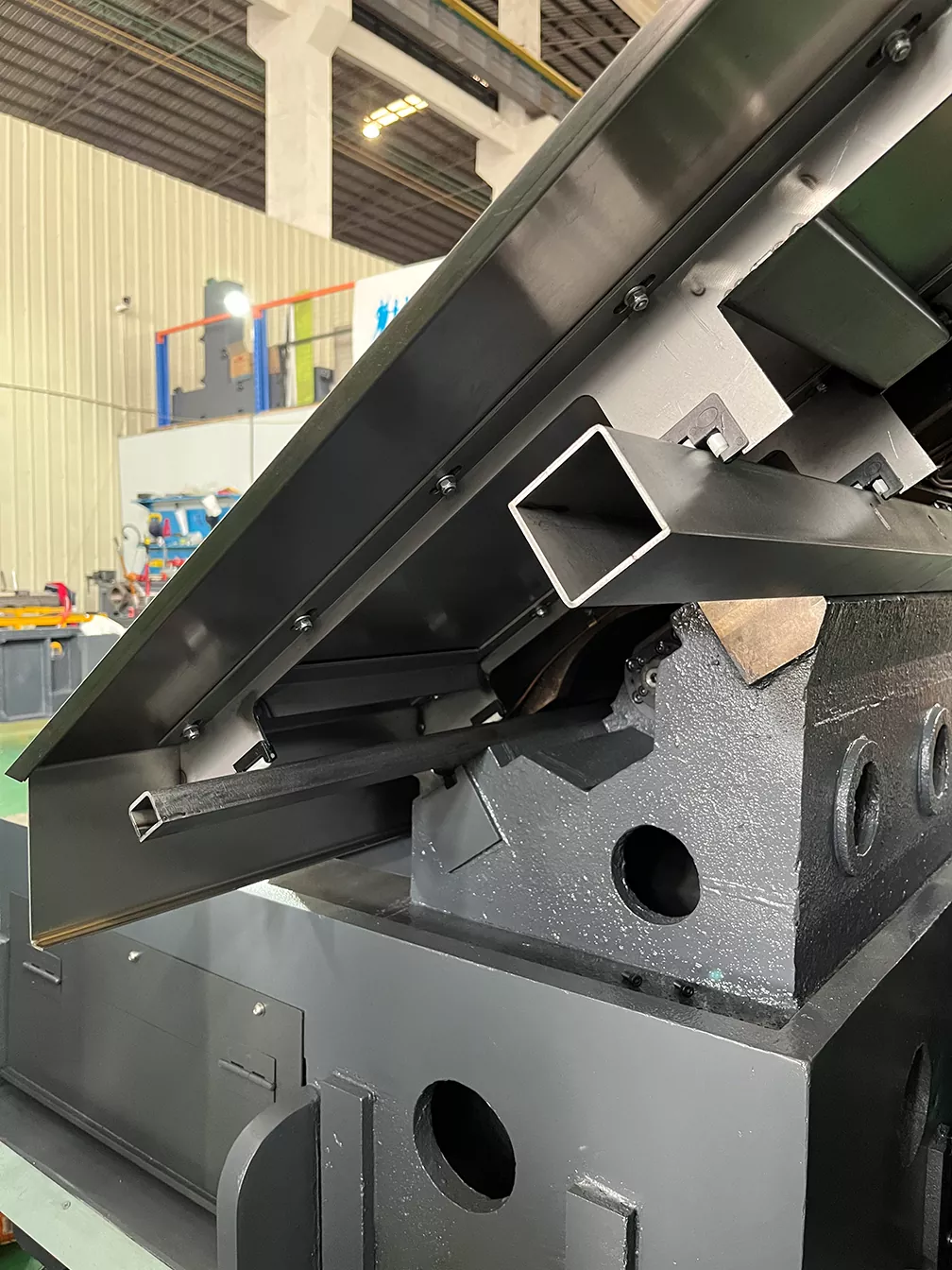

Use 3mm reinforcing bars for reinforcement，Single layer internal defense

We use two auxiliary guide rails, made of stainless steel with a length of 1.5m and a thickness of 3mm. Reduce tool lines and improve machine stability
